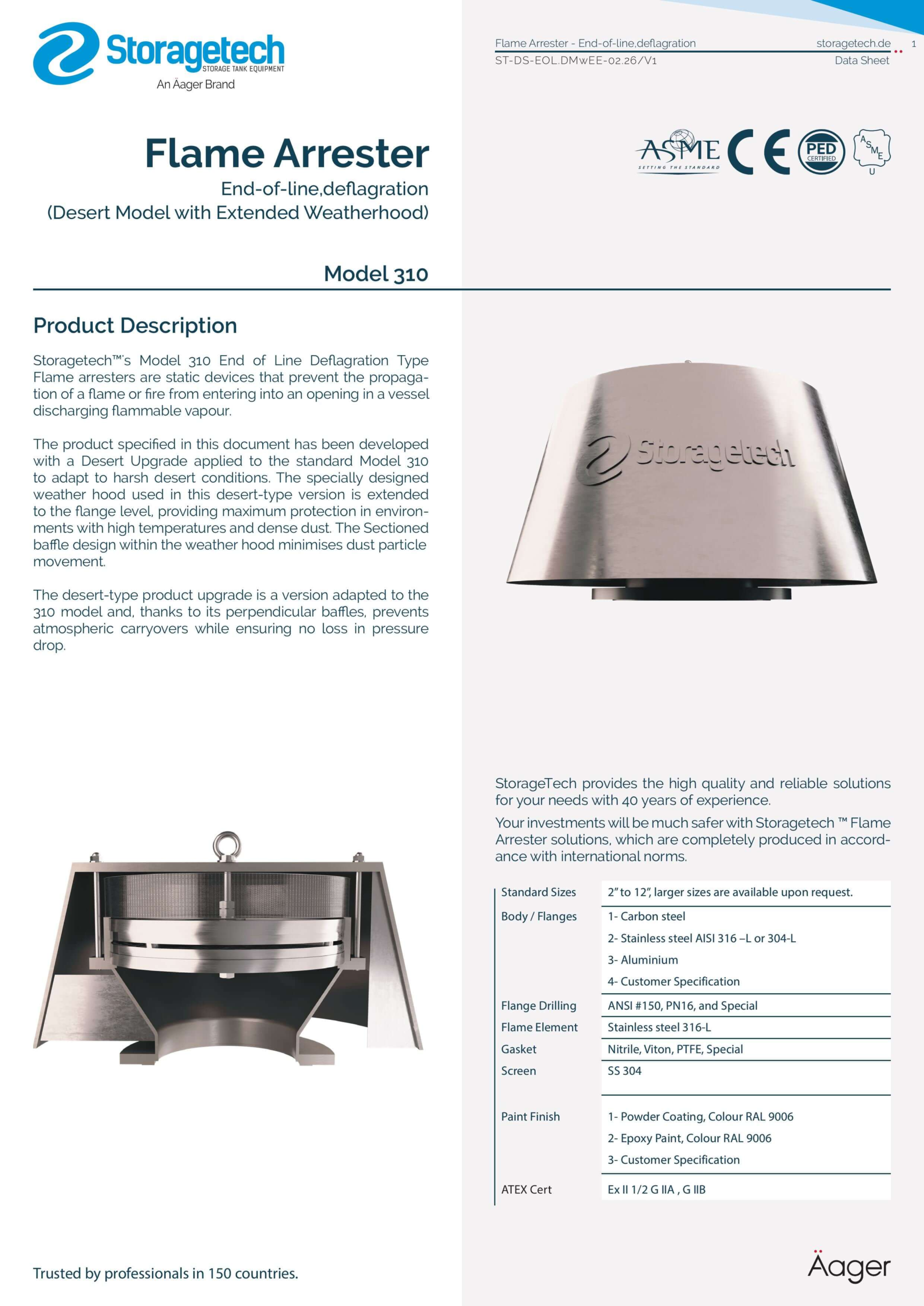

Storagetech™’s End of Line Deflagration Type Flame arresters are static devices that prevent the propagation of a flame or fire from entering into an opening in a vessel discharging flammable vapour.
The product specified in this document has been developed with a Desert Upgrade applied to the standard model to adapt to harsh desert conditions. The specially designed weather hood used in this desert-type version is extended to the flange level, providing maximum protection in environments with high temperatures and dense dust. The Sectioned
baffle design within the weather hood minimises dust particle
movement.
The desert-type product, thanks to its perpendicular baffles, prevents atmospheric carryovers while ensuring no loss in pressure drop.
| Standard sizes | 2” to 12”, larger sizes are available upon request. |
| Body / Flanges | 1- Carbon steel 2- Stainless steel AISI 316 –L or 304-L 3- Aluminium 4- Customer Specification |
| Flange drilling | ANSI #150, PN16, and Special |
| Flame element | Stainless steel 316-L |
| Gasket | Nitrile, Viton, PTFE, Special |
| Screen | SS 304 |
| Paint finish | 1-) Powder Coating, Colour RAL 9006 2-) Epoxy Paint, Colour RAL 9006 3-) Customer Specification |
| ATEX cert | Ex II 1/2 G IIA , G IIB |
- Desert Upgrade: Extended weather hood down to the flange level with internally supported baffled areas for high rigidity and dust protection.
- Trim materials are 316 stainless steel. Dual Certificated.
- Easy to maintenance
- Easy to install without special tools.
- Standard manufacturing comes with ANSI 150# flange; other flange types are available on request.
Your investments will be much safer with Storagetech ™ Flame Arrester solutions, which are completely produced in accordance with international norms.
